Can-type Motor Size Guide
Slot car can motors come in two standard orientations (Type A cans and Type B cans)
and in four sizes, 300, 500 (F16D), 550 (F26D), and 600 (F36D).
|
 |
|
|
|
|
Can Motor
Size Chart |
600/F36D
Big Can |
550/F26D
Medium "Stubby" Can |
500/F16D
Standard Can |
300
"Slimline" Can |
Type A Cans:
The shaft extends from the brush plate end. |
 |
Type B Cans:
The shaft extends from the bearing end. |
|

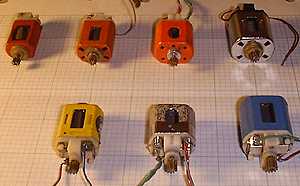

| Can Types and Sizes, from another point of view. |
Type A Cans,
left to right: F36D, F26D, F16D |  |
Type B Cans,
left to right: F36D, F26D, F16D, 300 |  |
|
| Mabuchi motors were marketed under a variety of brand names. |
| Type A cans | Type B cans |
Mabuchi Type 600A F36D
SR1402 Monogram Tiger X-200
Russkit 33
R3399 Revell SP600
4030 Cox TT-X200
K500 Kemtron Indy 500
1501 K&B Bobcat
1500 K&B Royal Bobcat
BZ 1000 |
Mabuchi Type 600B F36D
SR1405 Monogram Tiger X-220
R3392 Revell SP 90
4130 Cox TT-X250
SR-36 Kemtron |
Mabuchi Type 550A F26D
204 Dynamic F26D Stubby
R3389 Revell F26D Wild One
450 Classic F26D CM450 |
Mabuchi Type 550B F26D
460 Classic
450 Classic (dual shaft) |
Mabuchi Type 500A F16D
R1098 Revell SP 500
4010 Cox TT-X100
1708 Kemtron Hornet
1505 K&B Wildcat
Russkit 23
Mura 500A F16D
U-GO 500A F16D |
Mabuchi Type 500B F16D
SR1404 Monogram Tiger X-110
4110 Cox TT-X150
R3393 Revell SP 80 |
| - |
Mabuchi Type 300B (Slimline)
SR1403 Monogram Tiger X-88
1506 K&B Cougar
4115 Cox TT-X50
R3394 Revell SP 40
1709 Kemtron |
| Footnote: This chart is based on Auto World Catalog, 1968, page 144. |
|

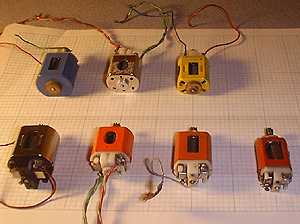

| More views of the same seven can-type slot car motors. |
 |
 |
 |
 |
|
