Tech Tools
Tech tools are tangible templates of the rules, allowing quick car inspections and
little room for interpretation or argument. Help with the tech tools provided by sltkr, thanks!
|
|

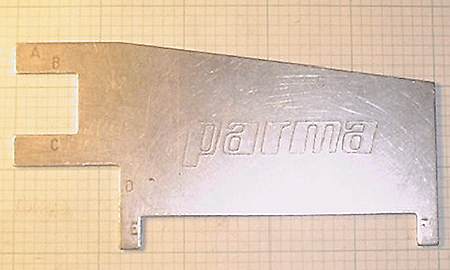

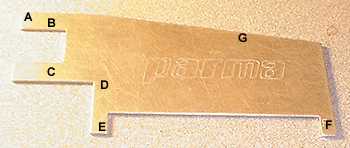

Above & right: The Parma General Tech Tool
- Maximum wing height
- Minimum tire diameter
- Maximum tire width
- ?
- Maximum chassis or track width
- Maximum length of front diplane
- Side dam angle and height
The thickness of the gauge is
used to inspect chassis clearance.
The gauge thickness is the minimum height allowed.
|
|

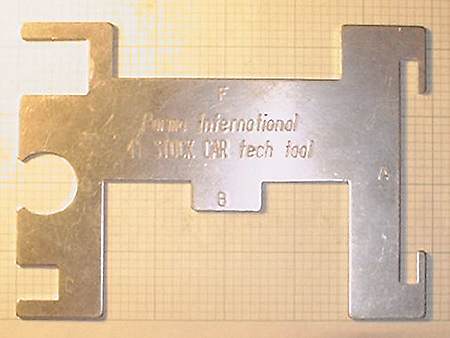

Above: The Parma 4.5 inch Stock Car Tech Tool
- Maximum rear spoiler width and maximum rear spoiler height.
- Minimum roof height (1 7/8 inches) - center of roof must touch lowest part of gauge.
- Minimum front tire width (.500)
- Minimum tire diameter - gauge must not slide over tire.
- Minimum rear tire width.
- Maximum chassis width, includes tires, wheels, etc.
The thickness of the gauge is
used to inspect chassis clearance.
The gauge thickness is the minimum height allowed.
|
|

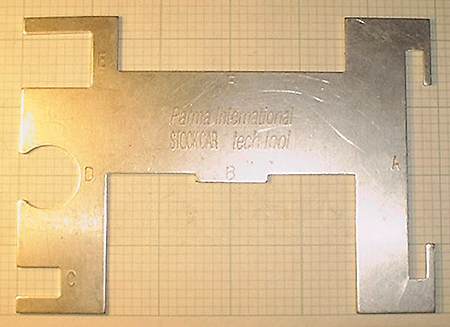

Above: The Parma 4 inch Stock Car Tech Tool
- Maximum rear spoiler width and maximum rear spoiler height.
- Minimum roof height (1 9/16 inches) - center of roof must touch lowest part of gauge.
- Minimum front tire width (.400)
- Minimum tire diameter - gauge must not slide over tire.
- Minimum rear tire width.
- Maximum chassis width, includes tires, wheels, etc.
The thickness of the gauge is
used to inspect chassis clearance.
The gauge thickness is the minimum height allowed.
|
|

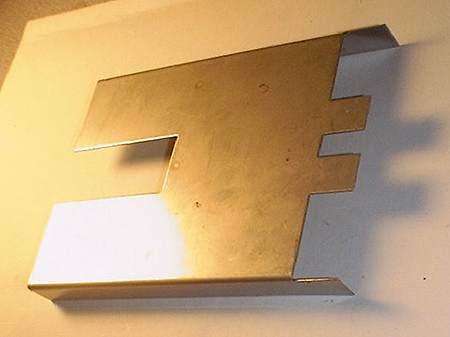

Above: Tech block, a flat surface the car sits on during the tech inspection,
whose dimensions reflect the rules applying to the car.
|
Also see the page of Tech Inspecton.
|
