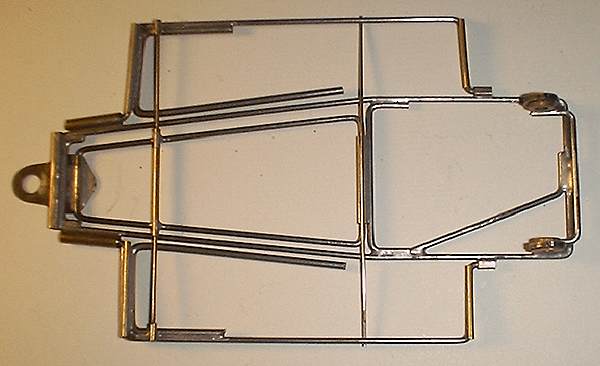

Wire Anglewinder Chassis
Item: 1/24 scale Wire Chassis
Collector: Jim Allen
Date collected: May 12, 2002
Source: auction
Made by: unknown
Made when: ?

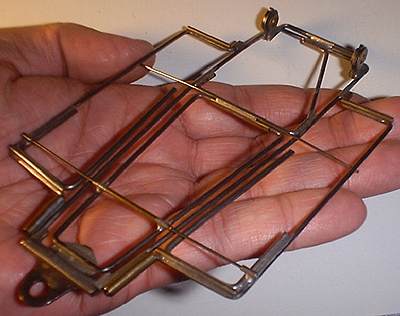

Notes: Steel wire, steel rods, brass pin tubes, larger brass tubes and brass box tubes.

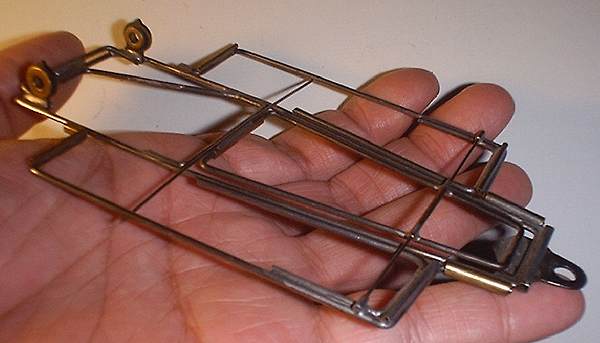

Very light and very flat chassis, very flexible. Inboard gears.

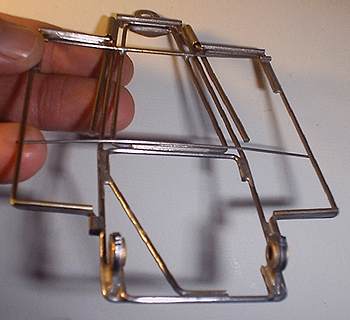

The floating body mounting assembly
sticks on top of a
magnetized wire (rearward), which holds it down thru minor vibrations.
Upward movement is limited by the forward spring wire. Very slight drop arm action,
against the same forward spring wire.
Very high quality construction, attention to detail.
